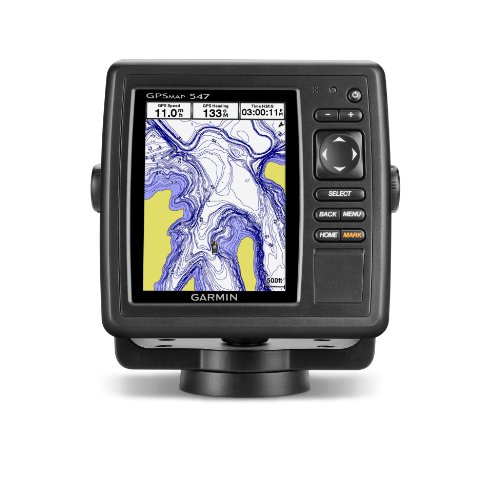

Garmin GPSMAP 547 10Hz GPS/GLONASS Receiver
- With the integration of a 10Hz GPS/GLONASS receiver, the 527 refreshes position and heading up to 10 times per second
- It displays constant and fluid on-screen location and proves to be incredibly accurate when marking and navigating to any one of 5,000 user-created waypoints
- It also has wireless connectivity, giving you the opportunity to connect and access marine-specific apps via smartphone or tablet
- includes worldwide basemap; US BlueChart g2 and US LakeVu HD data card
An Amazing Chartplotter 5″ VGA display 10 Hz GPS/GLONASS receiver Wireless connectivity U.S. coastal and inland mapping GPSMAP 547 allows for easy visibility, day or night. Whether it is flat, flush or swivel-mounted, it will be the focal point of your helm. It includes our hallmark user-friendly interface as well as U.S. coastal and inland mapping. With the integration of a 10Hz GPS/GLONASS receiver, the 547 refreshes position and heading up to 10 times per second. It displays constant and fluid on-screen location and proves to be incredibly accurate when marking and navigating to any one of 5,000 user-created waypoints. It also has wireless connectivity, giving you the opportunity to connect and access marine-specific apps via
Garmin Marine Gps
Carolyn Tillman
July 2, 2015Gone Fishing,
0
Was this review helpful to you?
|Matthew Wheeler
July 2, 2015Inland use,
0
Was this review helpful to you?
|flyguy
July 2, 2015Perfect for your cruiser.,
1. After mounting your display there is a cable in the box with a bunch of small wires coming out the other end (brown, white, red, green, black etc). Two of those will wire into your ignition key electrical so when you turn the key the unit powers on and it will power the unit. The other end screws into the GPS unit
2. A cable will come out the back and will run to the “backbone”. The “backbone” is made up of “T Connectors that run together in a line and looks like a spine. This is where different accessories will plug into. For example, The XM sat puck cable will run to one of the T connectors in the back bone. The GPS unit will have a cable that runs to another T connector in the back bone. The NMEA 2000 will run to the back bone also. The back bone can hold tons of accessories.
3. REMEMBER there will be power that runs to the back bone (Yellow cable). This is where it gets confusing. There will be power that runs to the backbone AND there will be power that runs direct to the GPS unit (wired into the keys switch). You may need the NMEA 2000 Power Isolator if you are adding stuff to the backbone. This keeps an even current to the accessories. It basically is a yellow T connector that can go anywhere in the line of T connectors that are connected together. I put mine in the middle.
4 If you have questions ask Garmin to send you the full NMEA 2000 connection PDF.. Or here is the link.
[…]
It is an awesome display and easy to see maps and overlays. Split screen is awesome. You can run your map, displays and music off your iPad or iPhone app called Gamin Helm.
I would definitely run the Lake HD ULTRA maps for US lakes. It is a great program and well worth the money! go with the $99.00 transducer for HD. The fish finder is unbelievable. Don’t waste the money on $300-500 transducers.
This is one of the best units I have used and definitely recommend. Email me with questions. I am happy to offer my 2 cents.
